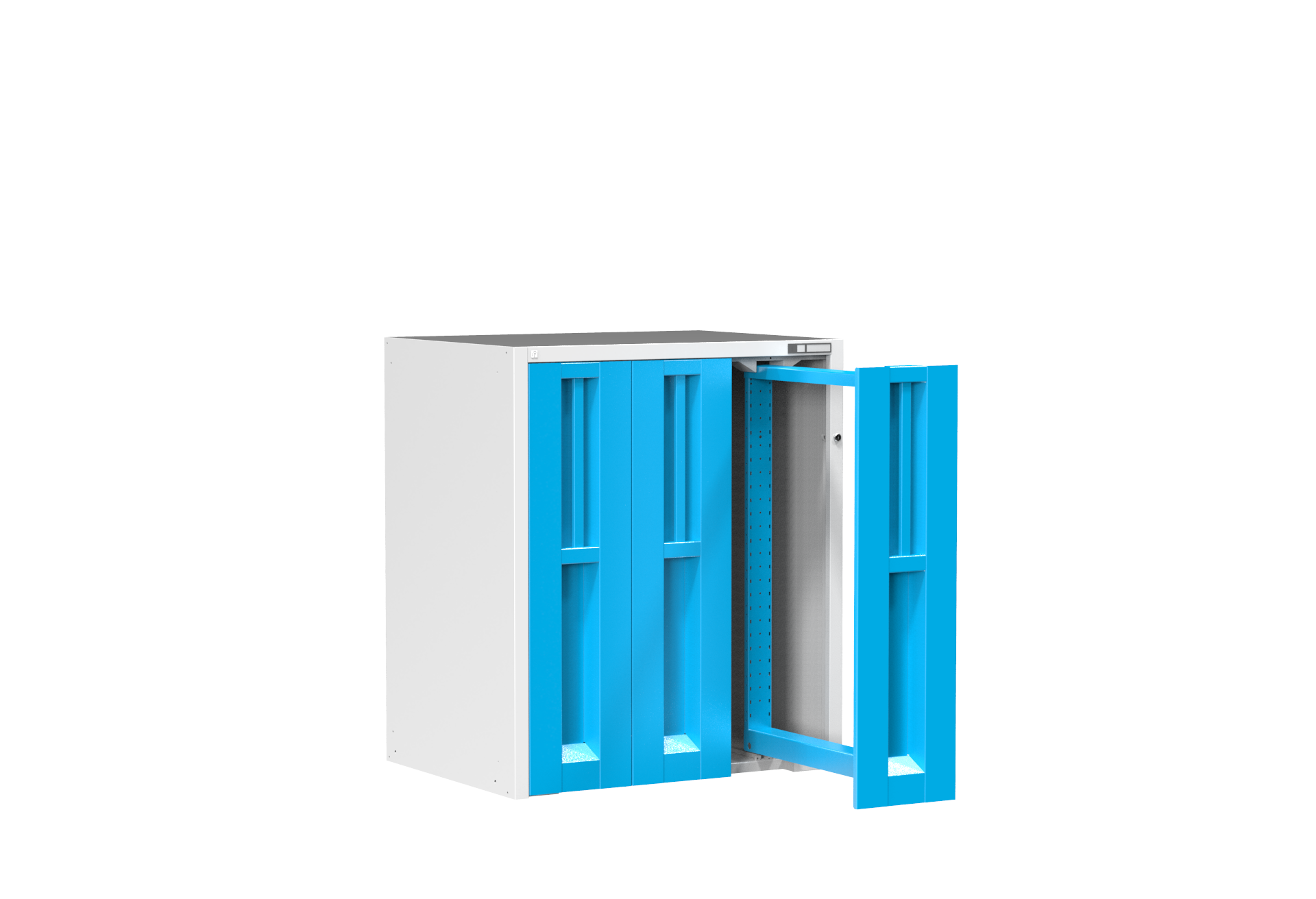

Vertical cabinet with sliding doors VSDK-2

The design of vertical cabinets offers significant space savings. Thanks to the vertical storage system, they can hold up to three times more tools than horizontal variants. The extension of vertical cabinets is not achieved using telescopic slides; instead, the doors move directly along the floor on wheels with ball bearings. Each frame has a load capacity of up to 300 kg. Shelves with rubber mats can be mounted onto each frame, providing optimal storage space, or NC tool frames can be installed for storing your NC tools.

Show more

The cabinet is always equipped with 3 vertical doors, each fitted with selected accessories and a central locking system. The doors slide directly along the floor on a wheel with a ball bearing. A specially designed holder allows the tool frames to be adjusted into three positions on both sides, increasing the tool storage capacity. The shelves are lined with a rubber mat.

Dimensions (width x depth x height) 1044 x 790 x 1215 mm
  Weight 105 kg
  Load capacity 900 kg
Empty frame

3x

Locking system Central locking system
